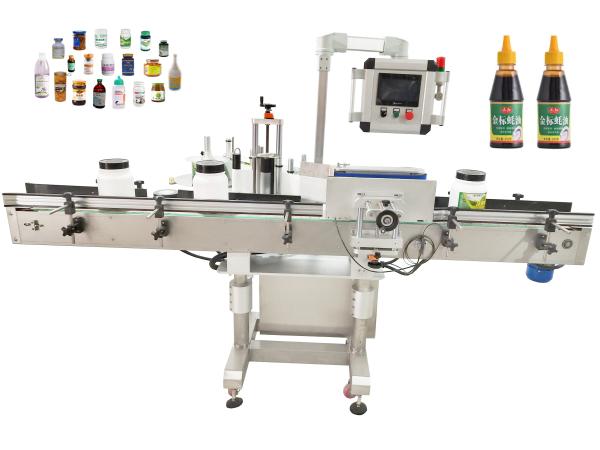

40mm 1phase Medicine Round Bottle Labeling Machine 320KG

Name: 40mm 1phase Medicine Round Bottle Labeling Machine 320KG
Brand: YIMU
Price: 1 USD

Wholesale 40mm 1phase Medicine Round Bottle Labeling Machine 320KG from china suppliers

Brand Name : YIMU

Model Number : YM510

Certification : CE

Place of Origin : Shanghai

MOQ : 1set

Price : Negotiate

Payment Terms : L/C, T/T, Western Union,

Supply Ability : 20 sets per month

Delivery Time : 2-10days

Packaging Details : wooden case, L2100*W700*H1720mm, 320KG

customized : any size bottle can be made

printer : date code printer (optional)

Material : SS304+aluminum

Label : transparent or normal label

Conveyor : L2000*W130*H1000-1100mm

Product name : Round bottle labeling machine

Application : Food,Medical,Beverage,Chemical,Commodity

Labeling accuracy : ±1mm

Contact Now

YM510 Automatic Paint Bukect Cans Jar Labeling Machine For Glass Bottle Wrap Around Labeler

Feature:

1, Automatic labeling is widely used in food,drinks,cosmetics and daily chemical industries. It can be used for round bottles/jars/cans, any cylinder products.

2, This automatic labeling machine is equipped with PLC and HMI control panel, all speed can be adjusted and save in HMI, which can help you adjust working data easily.

3, It is made of high quality material and imported machine parts, . Stainless steel 304 and aluminum profile frame construction and components are standard.

4, Machine can connect with any conveyor of other machines using, realize unmanned packing line. Machine also can be used with feeding and collecting turntable, or alone it using.

5, Precision servo or stepper motor and drive on labeling head for feeding label, more steady.

6. Code printer and transparent sensor function are optional.

Technical Parameter:

No.	Item	Data
1	Bottle diameter	Below 120mm, if more big bottle, customized
2	Label length	10-300mm, if more big label, customized
3	Label width(height)	10-190mm, if more big label, customized
4	Capacity	0-100 bottles/min
5	Conveyor speed	0-30m/min
6	Labeling error	＜ ±1mm
7	Power supply	700W, 220V, 50/60Hz, 1 phase
8	Machine size	L2000 * W800 * H1650 mm
9	Machine weight	320KG
10	Reel label Inner diameter	76mm or 40mm
11	Reel label outer diameter	Max.360mm

Machine Layout:

40mm 1phase Medicine Round Bottle Labeling Machine 320KG

Touch screen

Siemens touch screen,Powerful, color touch screen control, Chinese and English optional operating interface, convenient and intuitive, powerful data memory function, can store multiple groups of labeling parameters, with production counting function,power saving function. Production number setting prompt function, parameter setting protection function, convenient production management, different product labeling switch one key to achieve, without repeated debugging, simple and fast; And has the perfect fault prompt and the help function.

Ribbon Printer

It can be equipped with ribbon printer machine, which can print production date and batch number on line, reduce the packaging
 process of bottle and improve production efficiency.

PLC control system

Adopt Japanese Mitsubishi PLC control system, a more stable performance, Keep the machine safe and running steadily.

Wrap around labeling device

Automatically detect the bottle, separate the bottle and stick label on bottle, suitable for more different size bottle and label.

Bottle Dispersing

The application is flexible , the bottle standing type labeling machine is provided with an automatic bottle separating function ,can be produced in a single machine , and also can be connected with the production line .

High quality labeling head

1. It can be adjusted automatically according to the label height.2. Label and feeding label roller nearly 2/3 of the contact area, great avoid label and the roller sliding, improve accuracy of feeding label.
